Dmodel Gradient-Based Optimization Example (Density Method)

This page introduces the Dmodel_SynRM_gradient project.
The Dmodel_SynRM_gradient project assumes a synchronous reluctance motor (SynRM) and performs optimization using a gradient-based topology optimization method (density method).

Base mesh​

As in the multi-material optimization example, Dmodel_SynRM_gradient uses a base mesh whose rotor contains no permanent magnets and consists only of material ID 20 (magnetic core). The air/magnetic-core distribution is optimized throughout the rotor.

optimization.yaml (Dmodel_SynRM_gradient project)​

In optimization.yaml, level_set_function is set to pyemsol_density. This causes EMSOptimizer to calculate the gradient of objective W2 (the squared difference from the target torque) internally. Here, the target torque is set to 0.5 Nm. The design region is also set slightly smaller than the rotor region so that a rib remains around the outer circumference.
The calculated gradient is used by optimizer > gradient_update to update the design variables (here, values in [-1,1] representing the material properties of each element in the design region).
This example also applies a volume constraint (constraint_mode: volume_penalty) so that the magnetic-core area is at most 50% of the total area.

optimizer:
  name: gradient_update
  kwargs:
    constraint_mode: volume_penalty
    volume_frac_ulim: 0.5
level_set_function:
  name: pyemsol_density
  kwargs:
    proj_method: heaviside5
    objective_type: W2
    torque_scale: 4.0
    torque_target: 0.5
    coordinate: Polar
    design_region: [[0.0100, 0.0273], [5.0, 45.0]]

optimization_problem.yaml (Dmodel_SynRM_gradient project)​

When pyemsol_density is used, the objective function specified in its arguments is calculated internally. optimization_problem.yaml is used to configure case_names and to determine move-limit damping in gradient_update.

case_names:
  - transient

objectives:
  - function_name: torque_squared_error
    kwargs:
      torque_target: 0.5
      torque_scale: 4.0

ineq_constraints: []

eq_constraints: []

other_metrics:
  - function_name: average_torque
    kwargs:
      torque_scale: 4.0
  - function_name: torque_ripple
    kwargs:
      torque_scale: 4.0
  - function_name: torque_squared_error
    kwargs:
      torque_target: 0.5
      torque_scale: 4.0

Optimization Example​

This example performs 200 optimization iterations.

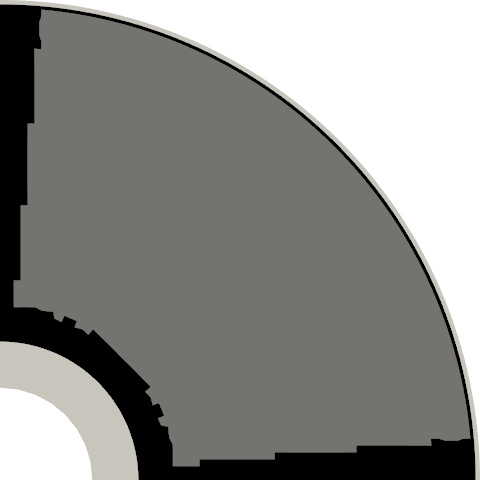

The following animation shows the shape evolution over 200 iterations (the best shape from each iteration). Gray areas have intermediate material-property values (grayscale), while black areas are magnetic core; the magnetic core can be seen forming on the rotor surface. Dmodel gradient optimization history

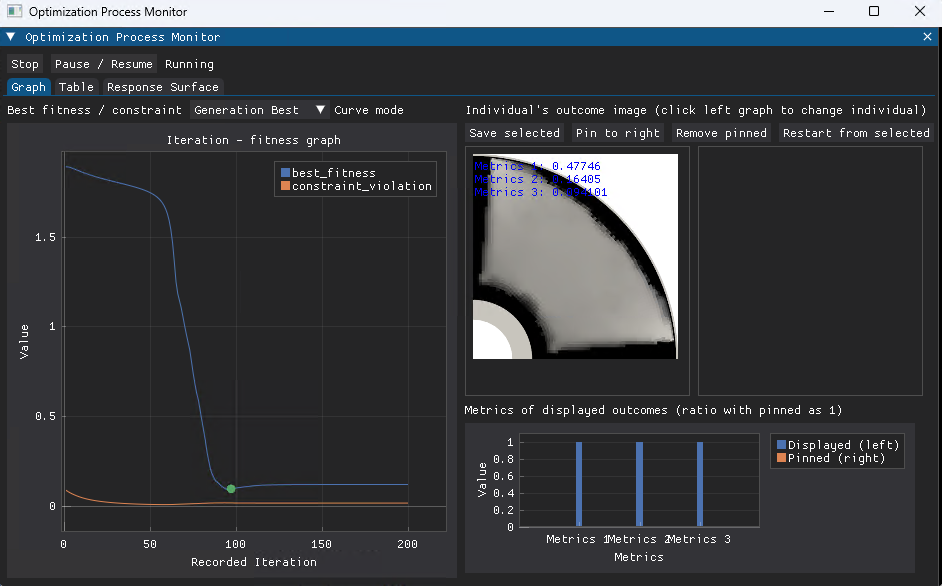

The GUI after completing 200 optimization iterations is shown below.
The best value was recorded at iteration 40 and remained almost flat thereafter, indicating sufficient convergence.
The magnetic-core area slightly exceeds the constraint value, but this can be mitigated by adjusting the penalty coefficient and related settings.

Dmodel gradient optimization history
