parameters

The parameters attribute of the Project class represents the user-defined parameters of the project. These parameters are unit-less values that can be controlled by the user through the Script checkpoint in the GUI. Such parameters can be referred to inside the expressions of the Properties Panel.

The other alternative to using the parameters attribute is to call Project.script.parameters which returns the same dictionary.

備考

This attribute is a dictionary where the keys are the parameter names and the values are the parameter values. The parameters attribute supports all the features of a standard Python dictionary, including adding, removing, and modifying parameters.

• To add a new parameter, you can simply assign a value to a new key in the dictionary.

  # Add a new parameter
  project.parameters["new_param"] = 42

• To remove a parameter, you can use the del statement.

  # Remove a parameter
  del project.parameters["new_param"]

• To modify an existing parameter, you can assign a new value to the existing key.

  # Modify an existing parameter
  project.parameters["existing_param"] = 100

Syntax

Project.parameters : dict[str, object]

Returns

• dict[str, object]: The user-defined parameters of the project in the form of a dictionary, where the keys are parameter names and the values are their corresponding values.

Example Usage

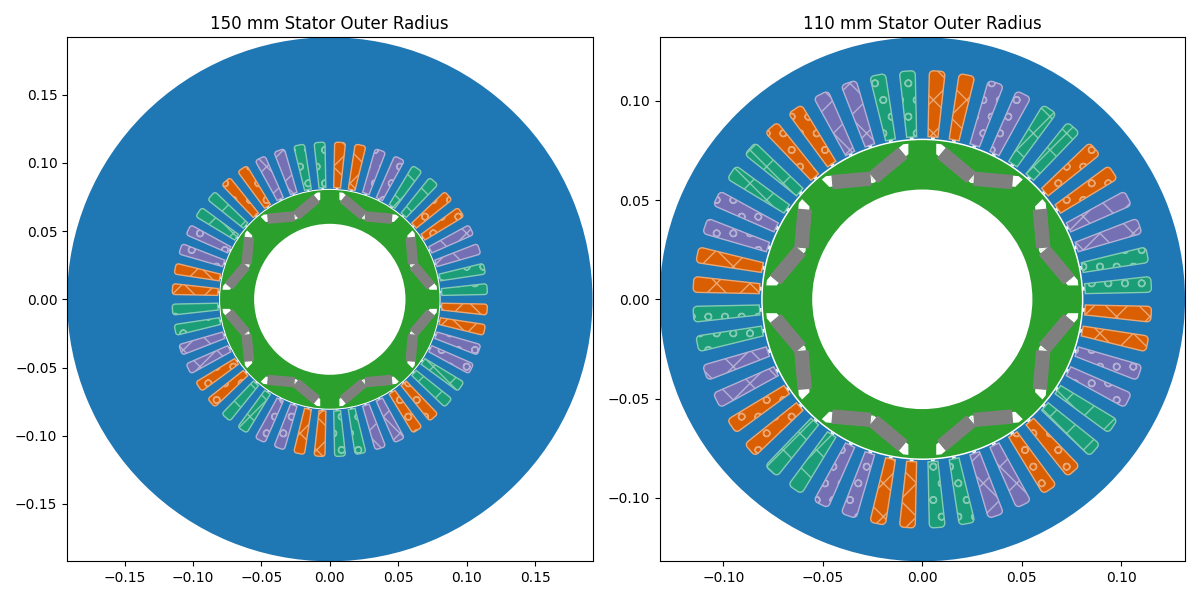

In the following example, we demonstrate how to add a new parameter to the project, assign it to the stator's outer diameter, reassign a new value to it, and draw the machine geometry in both cases.

import eMotorSolution as ems
from matplotlib import pyplot as plt

# Load an existing project
project = ems.load_project("path/to/your/project.json")

# Add a new parameter
project.parameters["sor"] = 150

# Assign the parameter to the stator's outer radius
project.machine.dimension.set_stator_outer_radius("sor", "mm")

# Show the machine geometry with sor = 150 mm
fig, ax = plt.subplots(1, 2, figsize=(12, 6))
ax[0].set_title("150 mm Stator Outer Radius")
project.show(ax=ax[0], legend=False)

# Reassign a new value to the parameter
project.parameters["sor"] = 110

# Show the machine geometry with sor = 110 mm
ax[1].set_title("110 mm Stator Outer Radius")
project.show(ax=ax[1], legend=False)
plt.show()
