Type 51M

The IPM_HoleMagnet51MData is accessed through the eMotorSolution.CheckPoints.Rotor.IPMSM.IPM_HoleMagnet51M module.

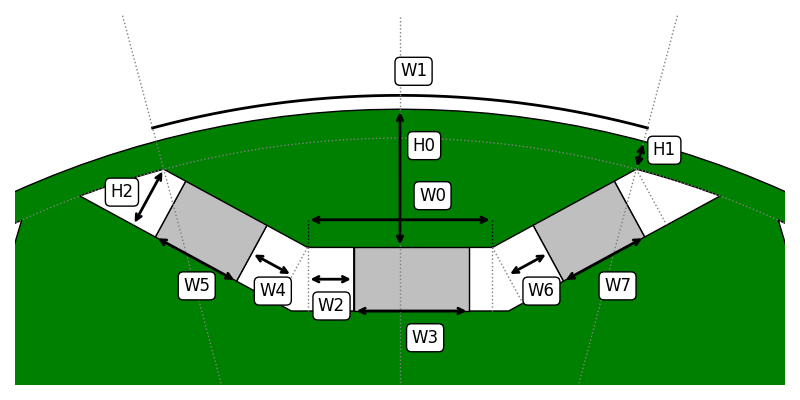

Parameters

• W0_expression: str | float The string mathematical expression or a float value for W0.
• W0_unit: Literal["m", "dm", "cm", "mm", "in", "ft"] The unit of the W0. Default is "m".
• W1_expression: str | float The string mathematical expression or a float value for W1.
• W1_unit: Literal["deg", "rad"] The unit of the W1. Default is "deg".
• W2_expression: str | float The string mathematical expression or a float value for W2.
• W2_unit: Literal["m", "dm", "cm", "mm", "in", "ft"] The unit of the W2. Default is "m".
• W3_expression: str | float The string mathematical expression or a float value for W3.
• W3_unit: Literal["m", "dm", "cm", "mm", "in", "ft"] The unit of the W3. Default is "m".
• W4_expression: str | float The string mathematical expression or a float value for W4.
• W4_unit: Literal["m", "dm", "cm", "mm", "in", "ft"] The unit of the W4. Default is "m".
• W5_expression: str | float The string mathematical expression or a float value for W5.
• W5_unit: Literal["m", "dm", "cm", "mm", "in", "ft"] The unit of the W5. Default is "m".
• W6_expression: str | float The string mathematical expression or a float value for W6.
• W6_unit: Literal["m", "dm", "cm", "mm", "in", "ft"] The unit of the W6. Default is "m".
• W7_expression: str | float The string mathematical expression or a float value for W7.
• W7_unit: Literal["m", "dm", "cm", "mm", "in", "ft"] The unit of the W7. Default is "m".
• H0_expression: str | float The string mathematical expression or a float value for H0.
• H0_unit: Literal["m", "dm", "cm", "mm", "in", "ft"] The unit of the H0. Default is "m".
• H1_expression: str | float The string mathematical expression or a float value for H1.
• H1_unit: Literal["m", "dm", "cm", "mm", "in", "ft"] The unit of the H1. Default is "m".
• H2_expression: str | float The string mathematical expression or a float value for H2.
• H2_unit: Literal["m", "dm", "cm", "mm", "in", "ft"] The unit of the H2. Default is "m".
• hole_material_init: str The name of the hole material. It should be one of the non-magnet materials in the project's materials collection. Default is Air.
• magnet_material_init: str The name of the magnet material. It should be one of the magnet materials in the project's materials collection. Default is NdFeB.

Methods

Method	Description
set_W0(expression, unit)	Sets the expression: str | float and unit: Literal["m", "dm", "cm", "mm", "in", "ft"] for W0.
set_W1(expression, unit)	Sets the expression: str | float and unit: Literal["deg", "rad"] for W1.
set_W2(expression, unit)	Sets the expression: str | float and unit: Literal["m", "dm", "cm", "mm", "in", "ft"] for W2.
set_W3(expression, unit)	Sets the expression: str | float and unit: Literal["m", "dm", "cm", "mm", "in", "ft"] for W3.
set_W4(expression, unit)	Sets the expression: str | float and unit: Literal["m", "dm", "cm", "mm", "in", "ft"] for W4.
set_W5(expression, unit)	Sets the expression: str | float and unit: Literal["m", "dm", "cm", "mm", "in", "ft"] for W5.
set_W6(expression, unit)	Sets the expression: str | float and unit: Literal["m", "dm", "cm", "mm", "in", "ft"] for W6.
set_W7(expression, unit)	Sets the expression: str | float and unit: Literal["m", "dm", "cm", "mm", "in", "ft"] for W7.
set_H0(expression, unit)	Sets the expression: str | float and unit: Literal["m", "dm", "cm", "mm", "in", "ft"] for H0.
set_H1(expression, unit)	Sets the expression: str | float and unit: Literal["m", "dm", "cm", "mm", "in", "ft"] for H1.
set_H2(expression, unit)	Sets the expression: str | float and unit: Literal["m", "dm", "cm", "mm", "in", "ft"] for H2.
set_hole_material(material_name)	Sets the material_name: str for hole_material. It should be one of the non-magnet materials in the project's materials collection.
set_magnet_material(material_name)	Sets the material_name: str for magnet_material. It should be one of the magnet materials in the project's materials collection.
validate()	Returns the validation status in dictionary format.

Attributes

Attribute	Description
W0	float Returns the evaluated value of W0 in m. ⚠️ read-only
W1	float Returns the evaluated value of W1 in deg. ⚠️ read-only
W2	float Returns the evaluated value of W2 in m. ⚠️ read-only
W3	float Returns the evaluated value of W3 in m. ⚠️ read-only
W4	float Returns the evaluated value of W4 in m. ⚠️ read-only
W5	float Returns the evaluated value of W5 in m. ⚠️ read-only
W6	float Returns the evaluated value of W6 in m. ⚠️ read-only
W7	float Returns the evaluated value of W7 in m. ⚠️ read-only
H0	float Returns the evaluated value of H0 in m. ⚠️ read-only
H1	float Returns the evaluated value of H1 in m. ⚠️ read-only
H2	float Returns the evaluated value of H2 in m. ⚠️ read-only
hole_material	str Returns the name of the hole material. ⚠️ read-only
magnet_material	str Returns the name of the magnet material. ⚠️ read-only
hints	dict[str, float] Returns the hints for the slot in m. ⚠️ read-only
