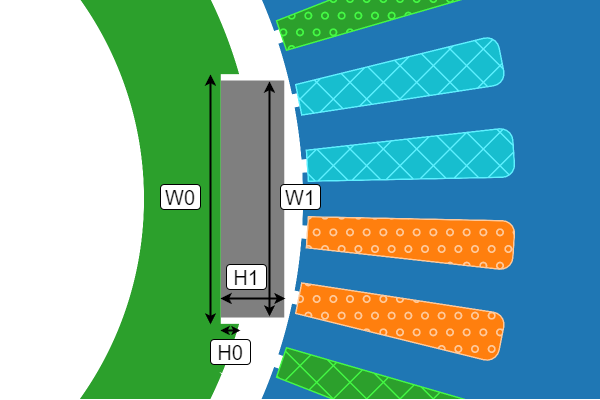

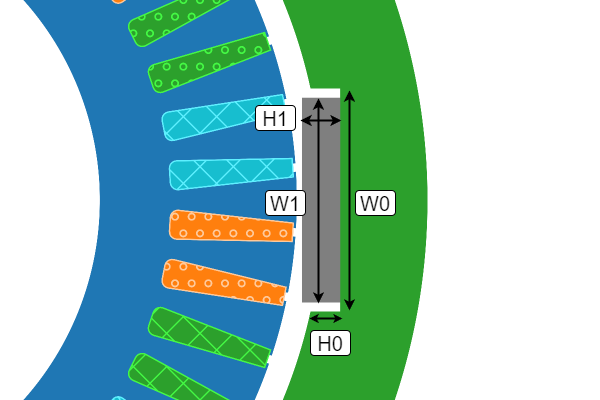

Rectangular Magnet

The Rectangular Magnet data class, SPM_SlotM15Data, is accessed through the eMotorSolution.CheckPoints.Rotor.SPMSM.SPM_SlotM15Data module.

Parameters

• W0_expression: str | float The string mathematical expression or a float value for W0.
• W0_unit: Literal["deg", "rad"] The unit of the W0. Default is "deg".
• W1_expression: str | float The string mathematical expression or a float value for W1.
• W1_unit: Literal["deg", "rad"] The unit of the W1. Default is "deg".
• H0_expression: str | float The string mathematical expression or a float value for H0.
• H0_unit: Literal["m", "dm", "cm", "mm", "in", "ft"] The unit of the H0. Default is "m".
• H1_expression: str | float The string mathematical expression or a float value for H1.
• H1_unit: Literal["m", "dm", "cm", "mm", "in", "ft"] The unit of the H1. Default is "m".

Methods

Method	Description
set_W0(expression, unit)	Sets the expression: str | float and unit: Literal["deg", "rad"] for W0.
set_W1(expression, unit)	Sets the expression: str | float and unit: Literal["deg", "rad"] for W1.
set_H0(expression, unit)	Sets the expression: str | float and unit: Literal["m", "dm", "cm", "mm", "in", "ft"] for H0.
set_H1(expression, unit)	Sets the expression: str | float and unit: Literal["m", "dm", "cm", "mm", "in", "ft"] for H1.
validate()	Returns the validation status in dictionary format.

Attributes

Attribute	Description
W0	float Returns the evaluated value of W0 in deg. ⚠️ read-only
W1	float Returns the evaluated value of W1 in deg. ⚠️ read-only
H0	float Returns the evaluated value of H0 in m. ⚠️ read-only
H1	float Returns the evaluated value of H1 in m. ⚠️ read-only
hints	dict[str, float] Returns the hints for the slot in m. ⚠️ read-only
