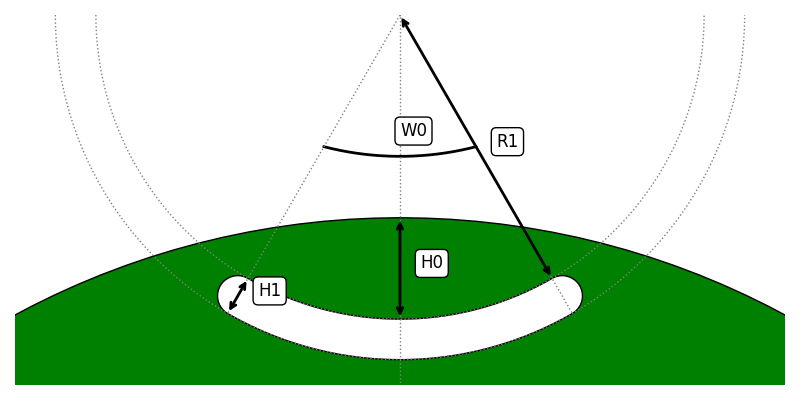

Type 54

The IPM_HoleMagnet54Data is accessed through the eMotorSolution.CheckPoints.Rotor.SynRM.SYN_HoleM54 module.

Parameters

• W1_expression: str | float The string mathematical expression or a float value for W1.
• W1_unit: Literal["deg", "rad"] The unit of the W1. Default is "deg".
• R1_expression: str | float The string mathematical expression or a float value for R1.
• R1_unit: Literal["m", "dm", "cm", "mm", "in", "ft"] The unit of the R1. Default is "m".
• H0_expression: str | float The string mathematical expression or a float value for H0.
• H0_unit: Literal["m", "dm", "cm", "mm", "in", "ft"] The unit of the H0. Default is "m".
• H1_expression: str | float The string mathematical expression or a float value for H1.
• H1_unit: Literal["m", "dm", "cm", "mm", "in", "ft"] The unit of the H1. Default is "m".
• hole_material_init: str The name of the hole material. It should be one of the non-magnet materials in the project's materials collection. Default is Air.

Methods

Method	Description
set_W1(expression, unit)	Sets the expression: str | float and unit: Literal["deg", "rad"] for W1.
set_R1(expression, unit)	Sets the expression: str | float and unit: Literal["m", "dm", "cm", "mm", "in", "ft"] for R1.
set_H0(expression, unit)	Sets the expression: str | float and unit: Literal["m", "dm", "cm", "mm", "in", "ft"] for H0.
set_H1(expression, unit)	Sets the expression: str | float and unit: Literal["m", "dm", "cm", "mm", "in", "ft"] for H1.
set_hole_material(material_name)	Sets the material_name: str for hole_material. It should be one of the non-magnet materials in the project's materials collection.
validate()	Returns the validation status in dictionary format.

Attributes

Attribute	Description
W1	float Returns the evaluated value of W1 in deg. ⚠️ read-only
R1	float Returns the evaluated value of R1 in m. ⚠️ read-only
H0	float Returns the evaluated value of H0 in m. ⚠️ read-only
H1	float Returns the evaluated value of H1 in m. ⚠️ read-only
hole_material	str Returns the name of the hole material. ⚠️ read-only
hints	dict[str, float] Returns the hints for the slot in m. ⚠️ read-only
