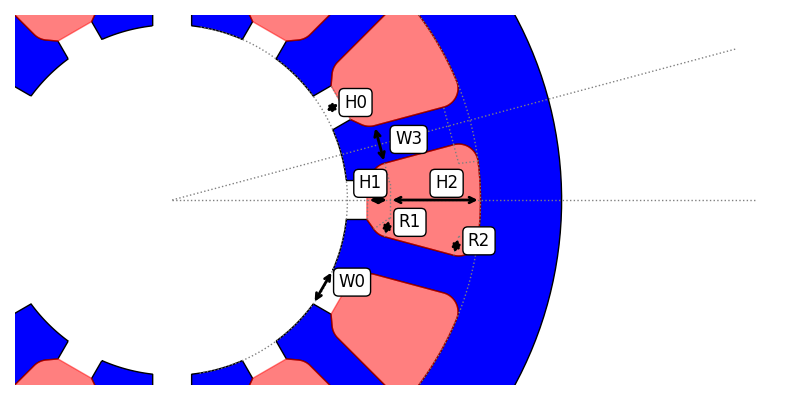

Type151

The Slot151Data is accessed through the eMotorSolution.CheckPoints.Stator.slots.slot151 module.

Parameters

• W0_expression: str | float The string mathematical expression or a float value for W0.
• W0_unit: Literal["m", "dm", "cm", "mm", "in", "ft"] The unit of the W0. Default is "m".
• W3_expression: str | float The string mathematical expression or a float value for W3.
• W3_unit: Literal["m", "dm", "cm", "mm", "in", "ft"] The unit of the W3. Default is "m".
• H0_expression: str | float The string mathematical expression or a float value for H0.
• H0_unit: Literal["m", "dm", "cm", "mm", "in", "ft"] The unit of the H0. Default is "m".
• H1_expression: str | float The string mathematical expression or a float value for H1.
• H1_unit: Literal["m", "dm", "cm", "mm", "in", "ft"] The unit of the H1. Default is "m".
• H2_expression: str | float The string mathematical expression or a float value for H2.
• H2_unit: Literal["m", "dm", "cm", "mm", "in", "ft"] The unit of the H2. Default is "m".
• R1_expression: str | float The string mathematical expression or a float value for R1.
• R1_unit: Literal["m", "dm", "cm", "mm", "in", "ft"] The unit of the R1. Default is "m".
• R2_expression: str | float The string mathematical expression or a float value for R2.
• R2_unit: Literal["m", "dm", "cm", "mm", "in", "ft"] The unit of the R2. Default is "m".

Methods

Method	Description
set_W0(expression, unit)	Sets the expression: str | float and unit: Literal["m", "dm", "cm", "mm", "in", "ft"] for W0.
set_W3(expression, unit)	Sets the expression: str | float and unit: Literal["m", "dm", "cm", "mm", "in", "ft"] for W3.
set_H0(expression, unit)	Sets the expression: str | float and unit: Literal["m", "dm", "cm", "mm", "in", "ft"] for H0.
set_H1(expression, unit)	Sets the expression: str | float and unit: Literal["m", "dm", "cm", "mm", "in", "ft"] for H1.
set_H2(expression, unit)	Sets the expression: str | float and unit: Literal["m", "dm", "cm", "mm", "in", "ft"] for H2.
set_R1(expression, unit)	Sets the expression: str | float and unit: Literal["m", "dm", "cm", "mm", "in", "ft"] for R1.
set_R2(expression, unit)	Sets the expression: str | float and unit: Literal["m", "dm", "cm", "mm", "in", "ft"] for R2.
validate()	Returns the validation status in dictionary format.

Attributes

Attribute	Description
W0	float Returns the evaluated value of W0 in m. ⚠️ read-only
W3	float Returns the evaluated value of W3 in m. ⚠️ read-only
H0	float Returns the evaluated value of H0 in m. ⚠️ read-only
H1	float Returns the evaluated value of H1 in m. ⚠️ read-only
H2	float Returns the evaluated value of H2 in m. ⚠️ read-only
R1	float Returns the evaluated value of R1 in m. ⚠️ read-only
R2	float Returns the evaluated value of R2 in m. ⚠️ read-only
winding_area	float Returns the area of the slot in m^2. ⚠️ read-only
wedge_area	float Returns the area of the wedge in m^2. ⚠️ read-only
total_area	float Returns the total area of the slot in m^2. ⚠️ read-only
hints	dict[str, float] Returns the hints for the slot in m. ⚠️ read-only
