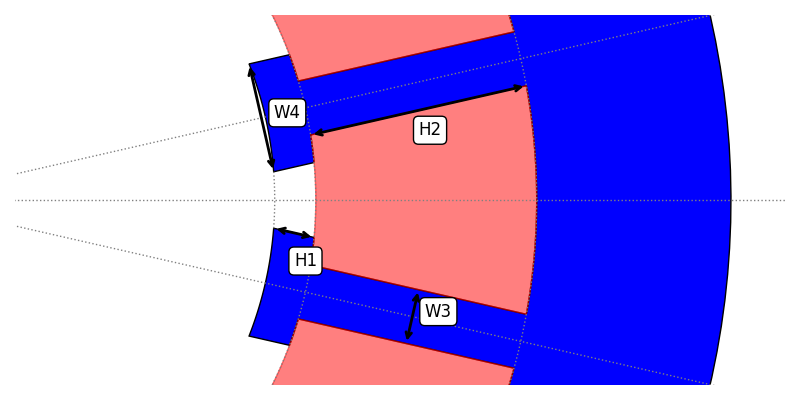

Type251

The Slot251Data is accessed through the eMotorSolution.CheckPoints.Stator.slots.slot251 module.

Parameters

• W3_expression: str | float The string mathematical expression or a float value for W3.
• W3_unit: Literal["m", "dm", "cm", "mm", "in", "ft"] The unit of the W3. Default is "m".
• W4_expression: str | float The string mathematical expression or a float value for W4.
• W4_unit: Literal["m", "dm", "cm", "mm", "in", "ft"] The unit of the W4. Default is "m".
• H1_expression: str | float The string mathematical expression or a float value for H1.
• H1_unit: Literal["m", "dm", "cm", "mm", "in", "ft"] The unit of the H1. Default is "m".
• H2_expression: str | float The string mathematical expression or a float value for H2.
• H2_unit: Literal["m", "dm", "cm", "mm", "in", "ft"] The unit of the H2. Default is "m".

Methods

Method	Description
set_W3(expression, unit)	Sets the expression: str | float and unit: Literal["m", "dm", "cm", "mm", "in", "ft"] for W3.
set_W4(expression, unit)	Sets the expression: str | float and unit: Literal["m", "dm", "cm", "mm", "in", "ft"] for W4.
set_H1(expression, unit)	Sets the expression: str | float and unit: Literal["m", "dm", "cm", "mm", "in", "ft"] for H1.
set_H2(expression, unit)	Sets the expression: str | float and unit: Literal["m", "dm", "cm", "mm", "in", "ft"] for H2.
validate()	Returns the validation status in dictionary format.

Attributes

Attribute	Description
W3	float Returns the evaluated value of W3 in m. ⚠️ read-only
W4	float Returns the evaluated value of W4 in m. ⚠️ read-only
H1	float Returns the evaluated value of H1 in m. ⚠️ read-only
H2	float Returns the evaluated value of H2 in m. ⚠️ read-only
winding_area	float Returns the area of the slot in m^2. ⚠️ read-only
wedge_area	float Returns the area of the wedge in m^2. ⚠️ read-only
total_area	float Returns the total area of the slot in m^2. ⚠️ read-only
hints	dict[str, float] Returns the hints for the slot in m. ⚠️ read-only
