query_point()

Query point data for a single point.

For temporal datasets, automatically sweeps all time points unless time_value is specified. For static datasets, returns values directly.

Parameters
  • point_id (int) — The point ID to query.
  • block_name (str | None, default: None) — Block name for MultiBlock meshes. Must be None for single-block meshes.
  • time_value (float | None, default: None) — Query a specific time value instead of sweeping all time points. Ignored for static datasets.
Returns

Returns a dictionary with array names as keys. Both static and temporal datasets use the same structure, with static datasets using time: [0].

# Scalars:
{
    "scalar_name": {
        "time": [0.0, 0.001, 0.002, ...],  # [0] for static
        "value": [val0, val1, val2, ...]
    },
    ...
}

# Vectors (3-component):
{
    "vector_name": {
        "time": [0.0, 0.001, 0.002, ...],  # [0] for static
        "x_value": [x0, x1, x2, ...],
        "y_value": [y0, y1, y2, ...],
        "z_value": [z0, z1, z2, ...]
    },
    ...
}

Examples​

Static single-block mesh​

from pyemsi import Plotter

p = Plotter("mesh.vtu")
data = p.query_point(42)

# Scalar: time is [0] for static
print(data["Temperature"]["value"][0])  # e.g., 300.5

# Vector: x_value, y_value, z_value
print(data["Velocity"]["x_value"][0])  # e.g., 1.0

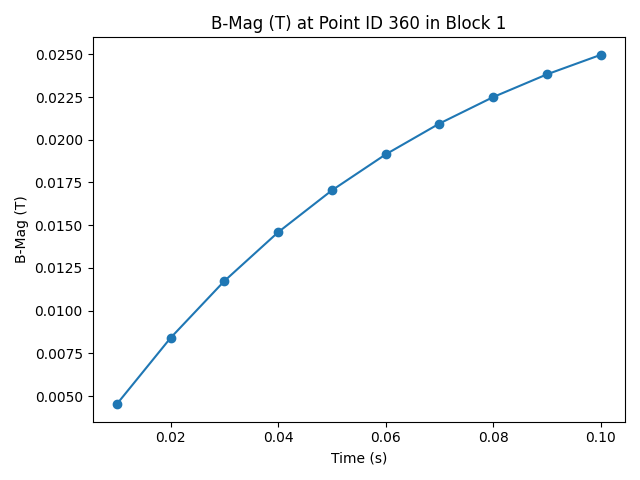

Temporal MultiBlock mesh​

from pyemsi import Plotter

p = Plotter("output.pvd")
data = p.query_point(100, block_name="coil")

# Scalar: dict with "time" and "value" lists
times = data["B-Mag (T)"]["time"]
values = data["B-Mag (T)"]["value"]

# Vector: dict with "time", "x_value", "y_value", "z_value" lists
times = data["B-Vec (T)"]["time"]
x_vals = data["B-Vec (T)"]["x_value"]
y_vals = data["B-Vec (T)"]["y_value"]
z_vals = data["B-Vec (T)"]["z_value"]

Query specific time value​

from pyemsi import Plotter

p = Plotter("output.pvd")
# Query at t=0.005 seconds only
data = p.query_point(100, block_name="coil", time_value=0.005)

# Result has single-element lists
print(data["B-Mag (T)"]["time"])   # [0.005]
print(data["B-Mag (T)"]["value"])  # [1.234]
