export()

Saves a screenshot of the rendered scene to an image file via plotter.screenshot().

If a file-backed mesh is loaded, export() triggers the same full visualization pipeline rebuild as show() before capturing the image — so all configured pipeline components (set_scalar(), set_contour(), set_vector(), set_feature_edges()) are applied automatically.

If no mesh is loaded, the current state of the underlying plotter is captured as-is.

Parameters
  • filename (str | Path) — Output image path. Supported formats: *.png, *.jpg, *.tif.
  • transparent_background (bool, default: False) — Save with a transparent background (PNG only).
  • window_size (tuple[int, int], default: (800, 600)) — Offscreen render resolution in pixels.
  • scale (float | None, default: None) — Resolution scaling factor. For example, scale=2 doubles the pixel dimensions relative to window_size.
Returns
  • Plotter — returns self to enable chaining.

Example​

from pyemsi import Plotter, examples

file_path = examples.transient_path()
plt = Plotter(file_path)
plt.set_scalar("B-Mag (T)", scalar_bar_args={"vertical": True})
plt.set_block_visibility("4", False)
plt.export("docs/static/demos/exported_plot.png")

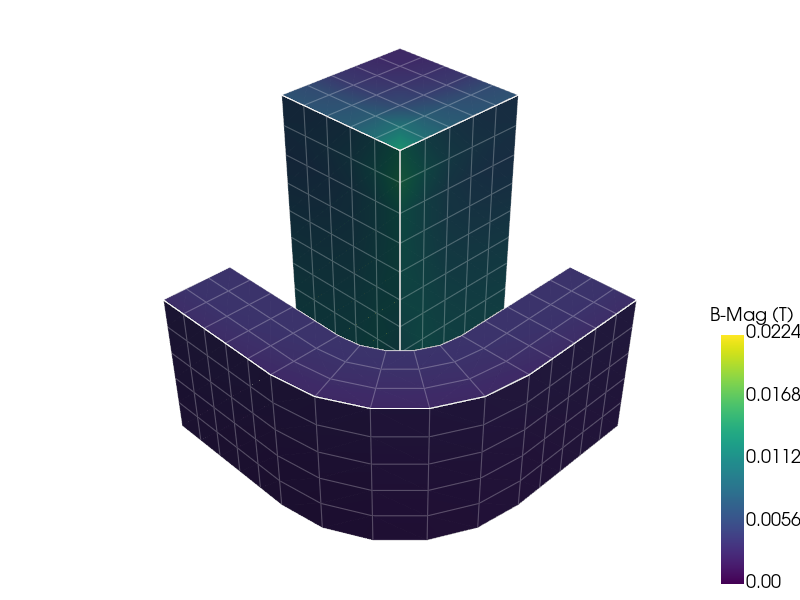

The output image would look like the following:

Exported plot
