sample_arcs_from_normal()

Sample mesh data along multiple circular arcs defined by normal vectors.

Creates circular arc probes for each (center, normal, polar, angle) tuple and samples the mesh data onto each arc. For temporal datasets, automatically sweeps all time points unless time_value is specified.

Parameters

• arcs (Sequence[tuple[Sequence[float], Sequence[float] | None, Sequence[float] | None, float | None]]) — List of arc definitions, each as a tuple (center, normal, polar, angle) where center is [x, y, z], normal is [x, y, z] or None (defaults to [0, 0, 1]), polar is [x, y, z] or None (defaults to [1, 0, 0]), and angle is a float in degrees or None (defaults to 90).
• resolution (int | list[int], default: 100) — Number of segments to divide each arc into. Can be a single int (applied to all arcs) or a list of ints (one per arc).
• time_value (float | None, default: None) — Query a specific time value instead of sweeping all time points. Ignored for static datasets.
• tolerance (float | None, default: None) — Tolerance for the sample operation. If None, PyVista generates a tolerance automatically.
• progress_callback (callable | None, default: None) — Callback function for progress updates. Called with (current_arc, total_arcs). Should return True to continue or False to cancel.

Returns

Returns a list of results (one per arc), where each result is a list of dictionaries (one per time step) with a "time" key and array names as keys. Each array has:

• For scalars: "distance", "value", "x", "y", "z" (sample point coordinates)
• For vectors: "distance", "x_value", "y_value", "z_value", "tangential" (component along arc), "normal" (component perpendicular to arc), "x", "y", "z" (sample point coordinates)

[
    # Results for arc 0
    [
        {"time": 0.0, "scalar_name": {...}, ...},
        {"time": 0.01, "scalar_name": {...}, ...},
        ...
    ],
    # Results for arc 1
    [
        {"time": 0.0, "scalar_name": {...}, ...},
        {"time": 0.01, "scalar_name": {...}, ...},
        ...
    ],
    ...
]

Examples

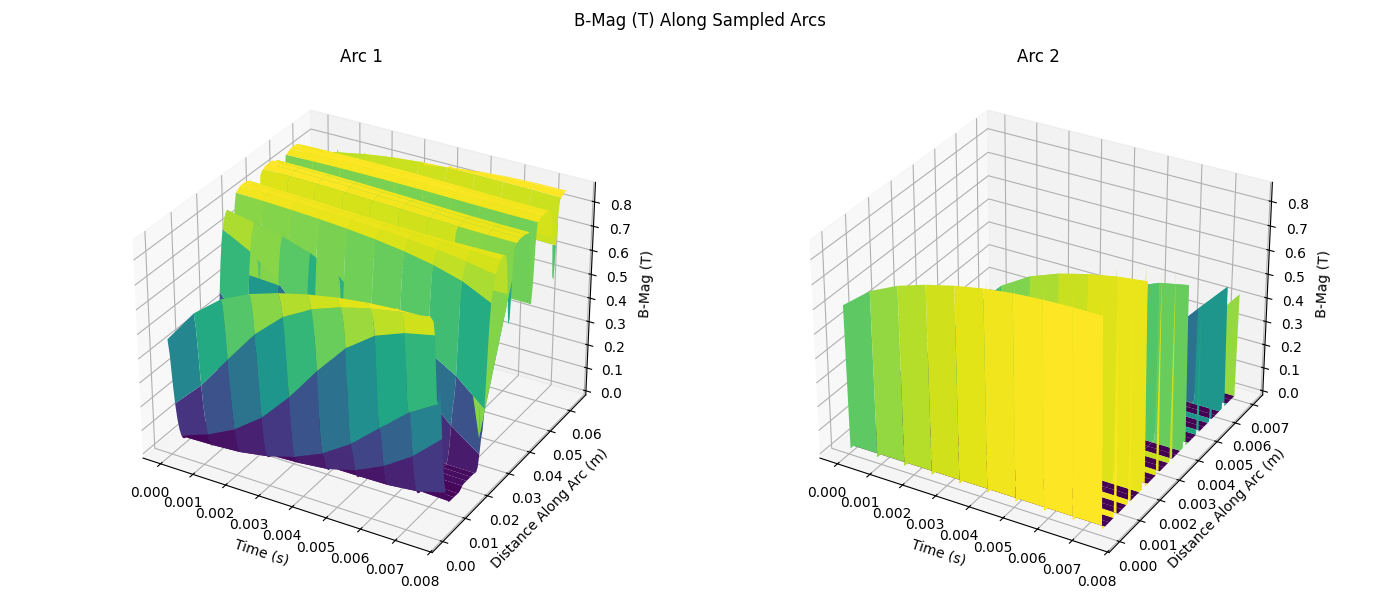

Sweep all time steps

from pyemsi import Plotter, examples
from matplotlib import pyplot
import numpy as np

file_path = examples.ipm_motor_path()
plt = Plotter(file_path)

data = plt.sample_arcs_from_normal(
    arcs=[
        ((0, 0, 0), (0, 0, 1), (0.080575, 0, 0), 45),
        ((0, 0, 0), (0, 0, 1), (0.0569751, 0.0569751, 0), 5),
    ],
    resolution=100,
)

fig, axes = pyplot.subplots(1, len(data), figsize=(14, 6), subplot_kw={"projection": "3d"})
axes = np.atleast_1d(axes)

for idx, arc_data in enumerate(data):
    time_values = [time_data["time"] for time_data in arc_data]
    distances = arc_data[0]["B-Mag (T)"]["distance"]
    value_grid = np.array([time_data["B-Mag (T)"]["value"] for time_data in arc_data])
    time_grid, distance_grid = np.meshgrid(time_values, distances, indexing="ij")

    axes[idx].plot_surface(time_grid, distance_grid, value_grid, cmap="viridis")
    axes[idx].set_xlabel("Time (s)")
    axes[idx].set_ylabel("Distance Along Arc (m)")
    axes[idx].set_zlabel("B-Mag (T)")
    axes[idx].set_title(f"Arc {idx + 1}")

fig.suptitle("B-Mag (T) Along Sampled Arcs")
fig.tight_layout()
fig.savefig("docs/static/demos/sample_arcs_from_normal.png")

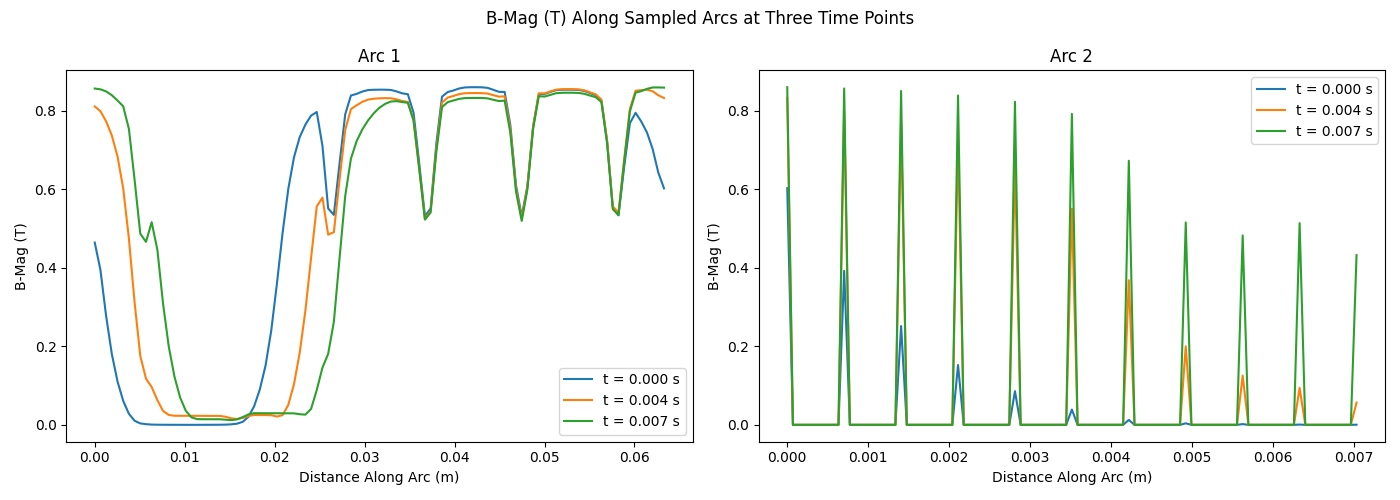

Plot three time slices

from pyemsi import Plotter, examples
from matplotlib import pyplot
import numpy as np

file_path = examples.ipm_motor_path()
plt = Plotter(file_path)

data = plt.sample_arcs_from_normal(
    arcs=[
        ((0, 0, 0), (0, 0, 1), (0.080575, 0, 0), 45),
        ((0, 0, 0), (0, 0, 1), (0.0569751, 0.0569751, 0), 5),
    ],
    resolution=100,
)

fig, axes = pyplot.subplots(1, len(data), figsize=(14, 5))
axes = np.atleast_1d(axes)

for idx, arc_data in enumerate(data):
    time_indices = sorted({0, len(arc_data) // 2, len(arc_data) - 1})

    for time_idx in time_indices:
        axes[idx].plot(
            arc_data[time_idx]["B-Mag (T)"]["distance"],
            arc_data[time_idx]["B-Mag (T)"]["value"],
            label=f"t = {arc_data[time_idx]['time']:.3f} s",
        )

    axes[idx].set_xlabel("Distance Along Arc (m)")
    axes[idx].set_ylabel("B-Mag (T)")
    axes[idx].set_title(f"Arc {idx + 1}")
    axes[idx].legend()

fig.suptitle("B-Mag (T) Along Sampled Arcs at Three Time Points")
fig.tight_layout()
fig.savefig("docs/static/demos/sample_arcs_from_normal_time_slices.png")

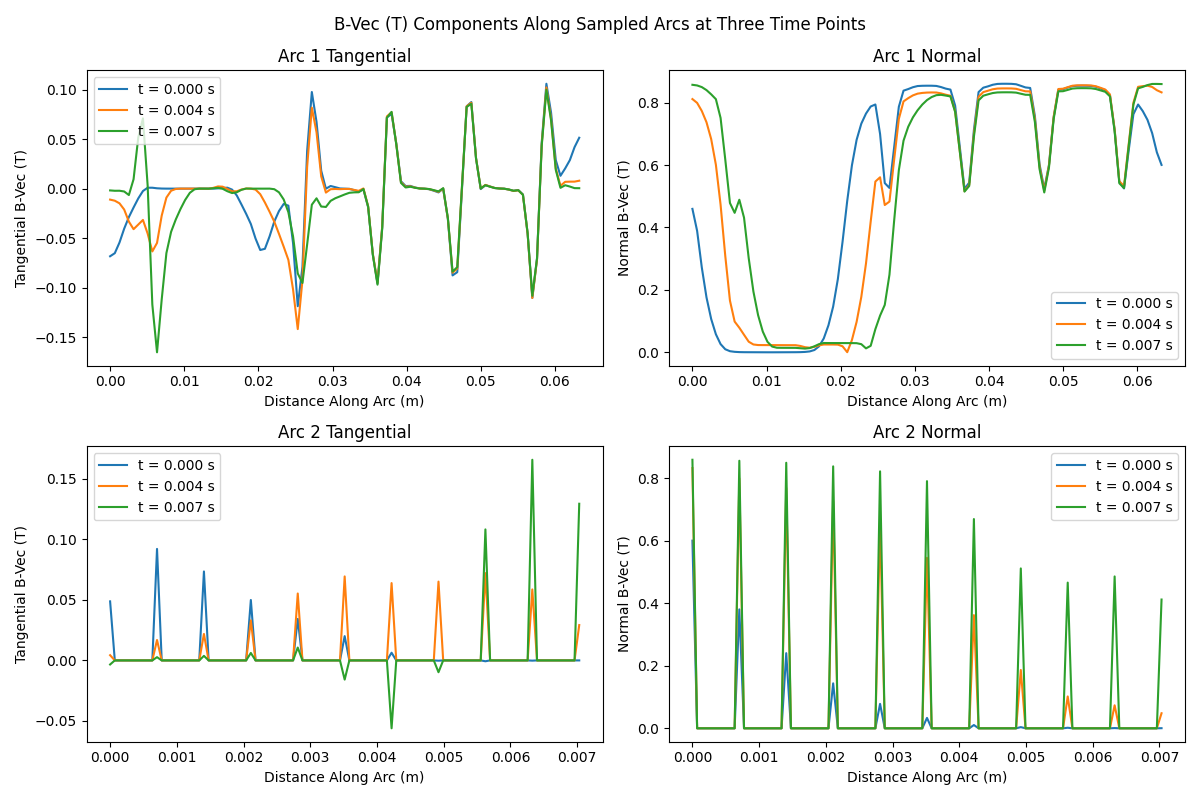

Plot tangential and normal B-Vec components

from pyemsi import Plotter, examples
from matplotlib import pyplot
import numpy as np

file_path = examples.ipm_motor_path()
plt = Plotter(file_path)

data = plt.sample_arcs_from_normal(
    arcs=[
        ((0, 0, 0), (0, 0, 1), (0.080575, 0, 0), 45),
        ((0, 0, 0), (0, 0, 1), (0.0569751, 0.0569751, 0), 5),
    ],
    resolution=100,
)

fig, axes = pyplot.subplots(len(data), 2, figsize=(12, 4 * len(data)))
axes = np.array(axes, dtype=object)
if axes.ndim == 1:
    axes = axes[np.newaxis, :]

for idx, arc_data in enumerate(data):
    time_indices = sorted({0, len(arc_data) // 2, len(arc_data) - 1})

    for time_idx in time_indices:
        label = f"t = {arc_data[time_idx]['time']:.3f} s"
        axes[idx, 0].plot(
            arc_data[time_idx]["B-Vec (T)"]["distance"],
            arc_data[time_idx]["B-Vec (T)"]["tangential"],
            label=label,
        )
        axes[idx, 1].plot(
            arc_data[time_idx]["B-Vec (T)"]["distance"],
            arc_data[time_idx]["B-Vec (T)"]["normal"],
            label=label,
        )

    axes[idx, 0].set_xlabel("Distance Along Arc (m)")
    axes[idx, 0].set_ylabel("Tangential B-Vec (T)")
    axes[idx, 0].set_title(f"Arc {idx + 1} Tangential")
    axes[idx, 0].legend()

    axes[idx, 1].set_xlabel("Distance Along Arc (m)")
    axes[idx, 1].set_ylabel("Normal B-Vec (T)")
    axes[idx, 1].set_title(f"Arc {idx + 1} Normal")
    axes[idx, 1].legend()

fig.suptitle("B-Vec (T) Components Along Sampled Arcs at Three Time Points")
fig.tight_layout()
fig.savefig("docs/static/demos/sample_arcs_from_normal_bvec_components_time_slices.png")

Notes

• Each arc is constructed in a counterclockwise direction from the polar vector as viewed from the direction of the normal vector.
• Use None for normal, polar, or angle to get PyVista defaults: [0, 0, 1], [1, 0, 0], and 90 degrees respectively.
• The progress_callback is useful for long-running operations. Return False to cancel processing.
• For vectors, tangential represents the component along the arc direction, while normal represents the magnitude perpendicular to the arc.
• The "x", "y", "z" keys contain the actual 3D coordinates of sample points along each arc.

See Also

• sample_arc_from_normal() - Sample single arc defined by normal vector
• sample_arcs() - Sample multiple arcs defined by start/end points
• sample_lines() - Sample along multiple straight lines
