17.5 Multi-Conductor Potential Current Source#
Defines a current source for driving current through multiple conductor regions in the finite-element mesh.
DCCURR defines current-inlet faces on the end faces of coil regions and uses the current-density distributions obtained from steady-current analyses of multiple coil regions.
DCCURR defines a current source for driving current through multiple conductor regions.
Settings#
DCCURR(17.5) JSON key: multi-conductor potential current source object
SERIES_ID(17.5)Series ID.
IN_ROTOR(17.5)Flag indicating whether the defined region is in the rotor.
MAT_IDS(17.5)Material IDs assigned to the region.
SMAT_ID(17.5)Material ID of the face surrounding the conductor.
CURRENT(17.5)Normalized current value.
SIGMA(17.5)Element conductivity
CAL_Je(17.5)Flag indicating whether eddy currents in the defined region are considered
Input format#
Text-format section
- Type:
Fixed parameter set 1
- Number of lines:
1 + NO_PARTS*1
- Number of parameters:
3, 4, 2*NO_PARTS
* DCCURR * SERIES_NO * NO_PARTS * OPTION *
DCCURR I I I
* MAT_ID * SMAT_ID * CURENT * SIGMA *
I I E E
I E
NO_PARTS specifies the number of properties assigned to DCCURR.
JSON format#
"17_Field_Source" :
[
{
"DCCURR" :
{
"SERIES_ID" : I,
"IN_ROTOR" : I,
"data" :
[
{
"MAT_IDS" : [ I, I ],
"SMAT_ID" : I,
"CURRENT" : E,
"SIGMA" : [ E, E ],
"CAL_Je" : I
}
]
}
}
]
Detailed description#
DCCURR defines current-inlet faces on the end faces of coil regions and uses the current-density distributions obtained from steady-current analyses of multiple coil regions.
Hint
In two-dimensional analysis, it cannot be used when the current-inlet face coincides with the conductor definition region.
In three-dimensional analysis, using it for multiple coil regions produces a current-density distribution concentrated toward the inside of curved coil regions.
DCCURR#
- DCCURR(17.5)#
Text-format section
[row, col] = [1, 1]
- Type:
String (S)
- Description:
Specifies the multi-conductor potential current source
DCCURR.
SERIES_ID#
- SERIES_ID(17.5)#
Text-format section
[row, col] = [1, 2]
- Type:
Integer (I)
- Description:
Source-term identifier.
Text-format section
NO_PARTS (text format only)
[row, col] = [1, 3]
Type=I
Number of properties assigned to the region. Each PHICOIL specified by NO_PARTS must have an independent conductor region and current-inlet face.
IN_ROTOR#
- IN_ROTOR(17.5)#
Text-format section
[row, col] = [1, 4]
Value |
Description |
|---|---|
0 |
In the fixed part. Default value |
1 |
In the moving part. |
Required for steady AC analysis with slip caused by sliding motion when N_CORRECT(8) ≠ 0.
data#
- data(17.5)#
- JSON key:
Multi-conductor potential current source data
data is an array with one entry for each DCCURR element.
MAT_IDS#
- MAT_IDS(17.5)#
Text-format section
[row, col] = [2, 1]
- Type:
Integer array (I)
- Description:
Material IDs of the elements to which multiple surface-defined currents are assigned (
MAT_ID(16.1)).
In text format, specify NO_PARTS material IDs and conductivities.
Note
In JSON format, multiple material IDs can be specified as an array.
SMAT_ID#
- SMAT_ID(17.5)#
Text-format section
[row, col] = [2, 2]
- Type:
Integer (I)
- Description:
Material ID of the surface elements forming the inlet face. The face orientation is arbitrary.
CURRENT#
- CURRENT(17.5)#
Text-format section
[row, col] = [2, 3]
- Type:
Real (E)
- Unit:
A
- Description:
Normalized current passing through the face.
For a wound coil, it may be easier to understand this value as the number of turns.
SIGMA#
- SIGMA(17.5)#
Text-format section
[row, col] = [2, 4]
- Type:
Real (E)
- Unit:
\(S/m\)
- Description:
Electrical conductivity of the element.
Specify one conductivity for each entry in the MAT_IDS array.
CAL_Je#
- CAL_Je(17.5)#
Text-format section
[row, col] = [2, 5]
Value |
Description |
|---|---|
0 |
Do not consider eddy currents in the defined region Default value |
1 |
Considers eddy currents in the defined region. The conductivity specified by |
Caution
Define the current-inlet face on a Bn=0 face or a periodic-symmetry face of the analysis region.
If conductors are connected, specify only one face of the material ID adjacent to the inlet face on line 2.
For a curved conductor, the current may become nonuniform.
A coil connected through a periodic-symmetry face must be defined as one
PART.Induced current is not included.

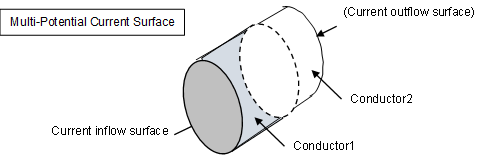

Example definition of DCCURR#
